This vignette is mainly a gallery of examples, serving to provide intuition behind the usage of cppally functionals, as well as showcasing their utility.

A note on writing code in C++ versus R

Working with scalars demands a different mental model to the one R typically encourages.

In R we usually vectorise everything upfront by using vectors and vectorised operations everywhere possible. For R this is both cleaner and more efficient. In C++ the reverse is true. It is arguably cleaner to write functions at the scalar level, and then vectorise after the fact.

As will soon be demonstrated in this vignette, pmap() exists to bridge that final step of taking scalar-based functions and vectorising¹ them.

Let’s load cppally in R and include cppally in our cpp or header file to get started.

library(cppally)

// Include this if you are copying the code example-by-example
#include <cppally.hpp>
using namespace cppally;

pmap

pmap is a C++ variadic function that allows one to apply a function across corresponding elements of multiple vectors.

Example: vectorised binary max


[[cppally::register]]
r_vector<r_dbl> cpp_pmax(r_vector<r_dbl> x, r_vector<r_dbl> y){
    return pmap(

    /* fn = */ [](auto a, auto b){

      /* expr = */ return max(a, b);

    },

    /* vectors = */ x, y
  );
}

x <- c(10, 20, 30)
y <- c(10, 50, 0)
cpp_pmax(x, y)
#> [1] 10 50 30

# pmap also recycles vectors

cpp_pmax(x, 15)
#> [1] 15 20 30

Example: vectorised if else


template <RVector T>
[[cppally::register]]
T cpp_if_else(r_vector<r_lgl> condition, T if_true, T if_false, T if_na){
    return pmap(
      [](r_lgl condition_, auto yes, auto no, auto missing) {
        if (condition_.is_true()){
            return yes;
        } else if (condition_.is_false()){
            return no;
        } else {
            return missing;
        }
    },

    condition, if_true, if_false, if_na
  );
}

cpp_if_else(c(TRUE, FALSE, NA), "yes", "no", "missing")
#> [1] "yes"     "no"      "missing"

pmap_with_index() is a variant that allows one to capture the index as we iterate along the vector

Example: Integer sequence along vector


template <RVector T>
[[cppally::register]]
r_vector<r_int> cpp_seq_along(T x){
    return pmap_with_index([](r_size_t i, auto){ // 2nd arg included so function can compile
        return as<r_int>(i) + 1; // R is 1-indexed
    }, x);
}

cpp_seq_along(letters)
#>  [1]  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
#> [26] 26

reduce

r_vector::reduce() is a left-fold reduction functional that successively applies a binary function along the elements of the vector (from left-to-right). It allows for returning early and explicitly continuing by calling done() and keep(). The input function is typically a lambda, but can also be a callable (struct with operator()).

Example of summing a vector with reduce


[[cppally::register]]
r_dbl cpp_sum(r_vector<r_dbl> x){
    return x.reduce([](auto a, auto b){ return a + b; });
}

cpp_sum(1:10)
#> [1] 55

We could have also passed the callable std::plus<>{}, which makes it even more readable.


[[cppally::register]]
r_dbl cpp_sum2(r_vector<r_dbl> x){
    return x.reduce(std::plus<>{});
}

cpp_sum2(1:10)
#> [1] 55

Use cumulative_reduce to return a vector of all the intermediate results of the reduction.


[[cppally::register]]
r_vector<r_dbl> cpp_cumsum(r_vector<r_dbl> x){
    return x.cumulative_reduce(std::plus<>{});
}

cpp_cumsum(1:10)
#>  [1]  1  3  6 10 15 21 28 36 45 55

While the above examples are useful for showing how to write a sum by hand, cppally provides sum() for free.


[[cppally::register]]
r_dbl cpp_sum3(r_vector<r_dbl> x){
    return sum(x);
}

cpp_sum3(c(10, 20, 30))
#> [1] 60

Returning early

To perform a reduction until a condition is met, use the helpers done() and keep()

Example: Check vector has any NA or all NA


[[cppally::register]]
bool cpp_any_na(r_vector<r_dbl> x){
    return x.reduce([](auto, auto curr){ return is_na(curr) ? done(true) : keep(false); }, /*init = */ false);
}

[[cppally::register]]
bool cpp_all_na(r_vector<r_dbl> x){
    return x.reduce([](auto, auto curr){ return is_na(curr) ? keep(true) : done(false); }, /*init = */ true);
}

x <- c(1, 2, NA, 4, 5)
cpp_any_na(x)
#> [1] TRUE
cpp_all_na(x)
#> [1] FALSE

Notice that the two folds are identical - only done/keep and init are swapped. This is the general pattern for any/all-style predicates.

Example: greatest-common-divisor across integer vector. The trick here is to break when the result is 1 as gcd(1, x) = 1 for any x.


[[cppally::register]]
r_int cpp_gcd(r_vector<r_int> x){
    return x.reduce([](auto acc, auto curr){

        auto res = cppally::gcd(acc, curr); // cppally has its own NA-aware gcd

        if ( (res == 1).is_true() ){
            return done(res);
        } else {
            return keep(res);
        }

    });
}

cpp_gcd(c(5L, 25L, 125L))
#> [1] 5
cpp_gcd(c(5L, 25L, 1L, 125L))
#> [1] 1

Other pmap helpers

There are 2 core pmap functionals, with 9 variants in total.

Core pmap functionals

pmap - Applies a function across elements.
pmap_with_index - Like pmap but the first argument of the lambda must be an index.

Other pmap variants

pmap_parallel - Like pmap but executed using multiple threads
pmap_simd - Like pmap but executed under OpenMP SIMD instructions
pmap_parallel_simd - Like pmap but multi-threaded and executed under OpenMP SIMD instructions
pmap_parallel_with_index - Like pmap_with_index but executed using multiple threads
pmap_simd_with_index - Like pmap_with_index but executed under OpenMP SIMD instructions
pmap_parallel_simd_with_index - Like pmap_with_index but executed using multiple threads and under OpenMP SIMD instructions
pmap_with_shift - A convenient wrapper around pmap to work with lagged values. Positional helpers lag(k), lead(k), curr() must be used to access lagged values. lag_exists() and lead_exists() can be used to test for out-of-bounds indexing. Out-of-bounds indexing returns NA by default, though this default can be changed in lag() and lead().

Multi-threading safety

All pmap variants try very hard to avoid unsafe multi-threaded calls to R C API entry-points. Multi-threaded and/or SIMD execution only applies for RVectorisable types, meaning that for types like r_str which are not inherently thread-safe, execution is always single-threaded and non-SIMD, even if you request multiple threads or SIMD.

To illustrate this, let’s revisit our pmax from earlier but this time using pmap_parallel and with a template that accepts r_dbl or r_str vectors.



// Allows us to set threads and automatically restore them once thread_guard is destroyed (even if R aborts)
struct thread_guard {

  int curr_threads;

  // Set threads and store previous threads
  thread_guard(int n) {
    curr_threads = get_threads();
    set_threads(n);
  }

  // Restore threads on destruction
  ~thread_guard() {
    set_threads(curr_threads);
  }

};
template <typename F>
decltype(auto) with_threads(int n, F&& f) {
  thread_guard guard(n);
  return std::forward<F>(f)();
}

template <typename T>
requires (any<T, r_dbl, r_str>) // doubles or strings
[[cppally::register]]
r_vector<T> cpp_parallel_pmax(r_vector<T> x, r_vector<T> y, int n_threads){
    return with_threads(n_threads, [&]{

      return pmap_parallel(
      [](const auto& a, const auto& b){
          return max(a, b);
      },
      x, y
    );
  });
}

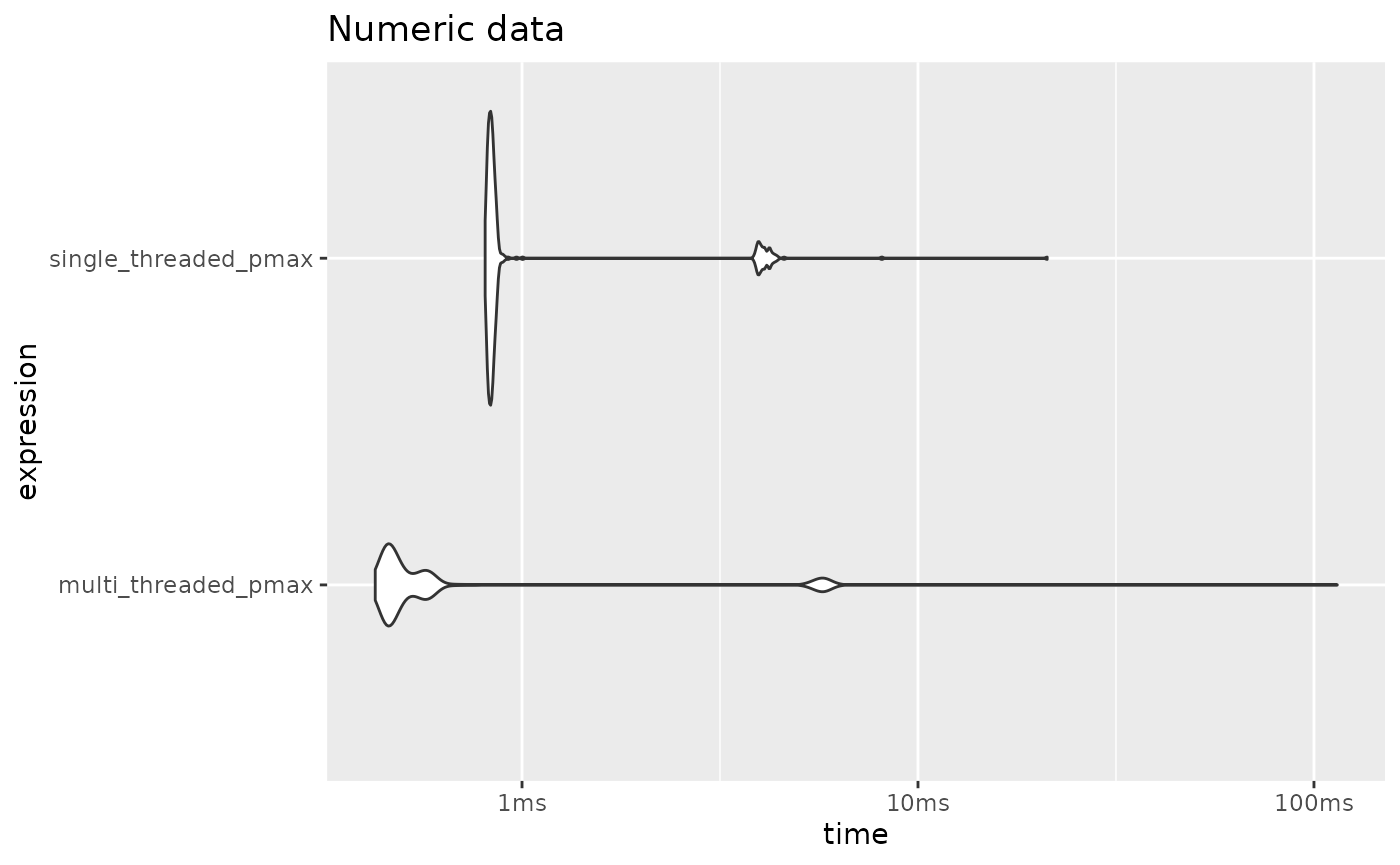

We can detect whether or not multiple threads were used by observing benchmark time.

library(bench)
library(ggplot2)

x <- as.double(rpois(5e05, lambda = 10))
y <- as.double(rpois(5e05, lambda = 15))

(
  mark(
    single_threaded_pmax = cpp_parallel_pmax(x, y, n_threads = 1),
    multi_threaded_pmax = cpp_parallel_pmax(x, y, n_threads = 4)
  ) |>
    autoplot(type = "violin")
) +
  labs(title = "Numeric data")

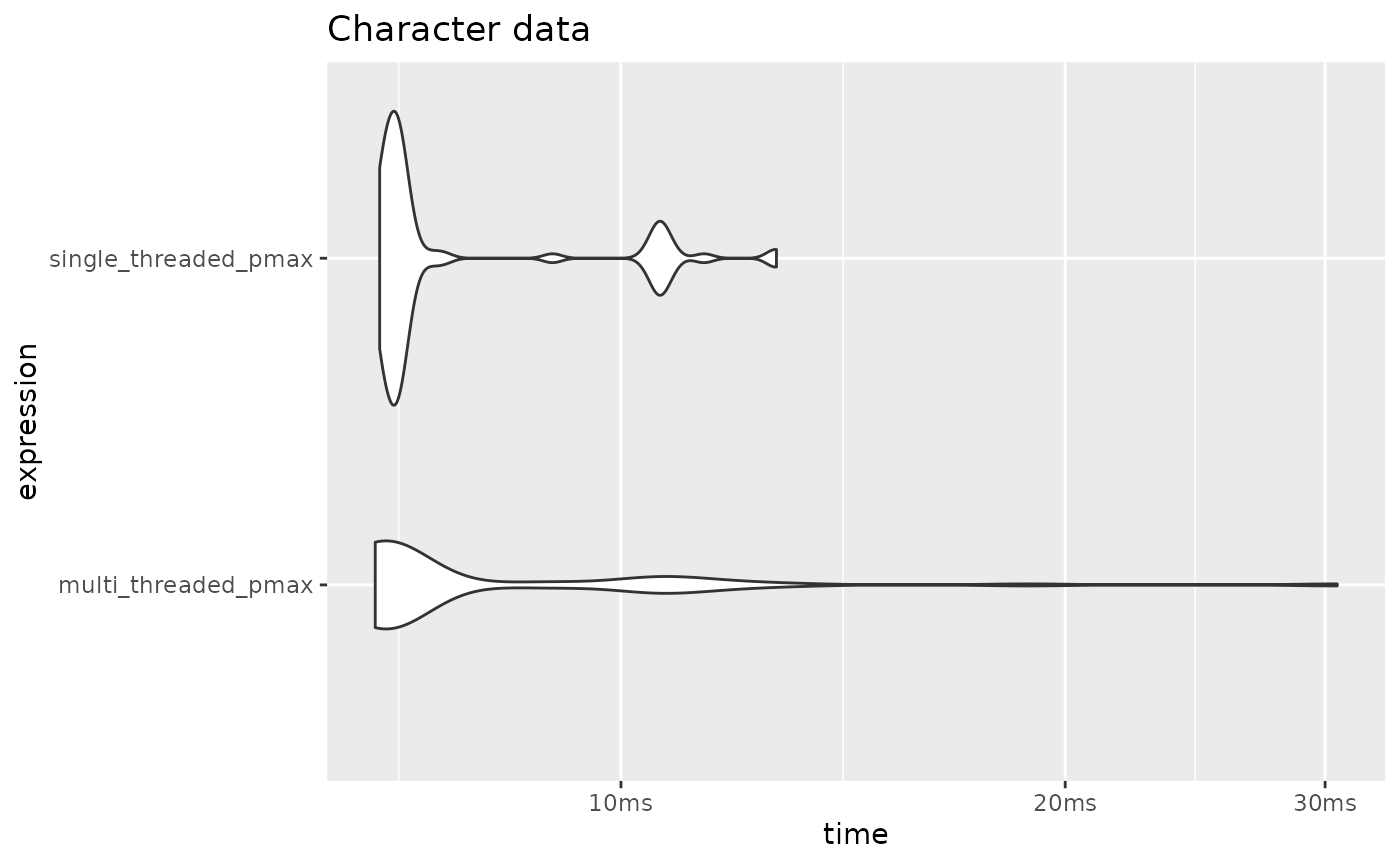

We can see that the same benchmarks on character vector data yield identical results between the one requesting 1 thread and the one requesting 4 threads. Even though we request 4 threads, it still gets executed as single-threaded.


x <- as.character(x)
y <- as.character(y)

(
  mark(
    single_threaded_pmax = cpp_parallel_pmax(x, y, n_threads = 1),
    multi_threaded_pmax = cpp_parallel_pmax(x, y, n_threads = 4)
  ) |>
    autoplot(type = "violin")
) +
  labs(title = "Character data")

Lagged operations

Use pmap_with_shift to perform lagged operations. It checks for out-of-bounds access and therefore is safer than hand-writing it via pmap_with_index


[[cppally::register]]
r_vector<r_int> cpp_lag(r_vector<r_int> x, int k){
    return pmap_with_shift([&](auto a){
        return lag(a, k);
    }, x);
}

# Lags
cpp_lag(1:10, k = 1)
#>  [1] NA  1  2  3  4  5  6  7  8  9
cpp_lag(1:10, k = 2)
#>  [1] NA NA  1  2  3  4  5  6  7  8
cpp_lag(1:10, k = 3)
#>  [1] NA NA NA  1  2  3  4  5  6  7

# Leads
cpp_lag(1:10, k = -1)
#>  [1]  2  3  4  5  6  7  8  9 10 NA
cpp_lag(1:10, k = -2)
#>  [1]  3  4  5  6  7  8  9 10 NA NA
cpp_lag(1:10, k = -3)
#>  [1]  4  5  6  7  8  9 10 NA NA NA

pmap_with_shift has five helpers: lag(), lead(), curr(), lag_exists(), and lead_exists(). These are designed to assist in performing efficient lagged operations in a vectorised context, while maintaining readability.

Example: Lagged differencing


[[cppally::register]]
r_vector<r_dbl> cpp_diff(r_vector<r_dbl> x){
    return pmap_with_shift([&](auto a){
        return curr(a) - lag(a);
    }, x);
}

cpp_diff(1:10)
#>  [1] NA  1  1  1  1  1  1  1  1  1
cpp_diff(seq(10, 100, by = 5))
#>  [1] NA  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5

In-place functionals

To perform in-place transformations, use r_vector::apply as pmap always allocates a fresh vector and therefore cannot do in-place modification. apply comes in the same flavours as pmap - apply_simd, apply_parallel, apply_parallel_simd, and the _with_index variants.


[[cppally::register]]
r_vector<r_dbl> cpp_in_place_abs(r_vector<r_dbl>& x){
    x.apply([](auto a){ return abs(a); });
    return x;
}

x <- c(-20, -10)
cpp_in_place_abs(x)
#> [1] 20 10

x # Modified in-place
#> [1] 20 10

r_vector::shift is a helper which can shift an entire vector in-place. It takes shift k and an optional fill_value which defaults to NA.


[[cppally::register]]
r_vector<r_dbl> cpp_in_place_lag(r_vector<r_dbl>& x, int k){
    x.shift(k);
    return x;
}

x <- c(1, 2, 3, 4, 5)
cpp_in_place_lag(x, k = 1)
#> [1] NA  1  2  3  4
x # lagged in-place
#> [1] NA  1  2  3  4

# keep lagging until we run out of elements to lag
cpp_in_place_lag(x, k = 1)
#> [1] NA NA  1  2  3
cpp_in_place_lag(x, k = 1)
#> [1] NA NA NA  1  2
cpp_in_place_lag(x, k = 1)
#> [1] NA NA NA NA  1
cpp_in_place_lag(x, k = 1)
#> [1] NA NA NA NA NA

Vectorised math

pmap also makes it easy to write vectorised math functions.

Example: Vectorised square-root

cppally provides a scalar version of sqrt(), which can be easily vectorised with pmap.



[[cppally::register]]
r_vector<r_dbl> cpp_sqrt(r_vector<r_dbl> x){
    return pmap_parallel_simd(
      [](auto v){
        return sqrt(v);
      },
    x
  );
}

Here we are using pmap_parallel_simd, a variant of pmap that applies the supplied transformation under multiple threads and under an OpenMP SIMD directive. SIMD (single-instruction-multiple-data) is when the machine performs the same operation on multiple data points instead of one data point at time.

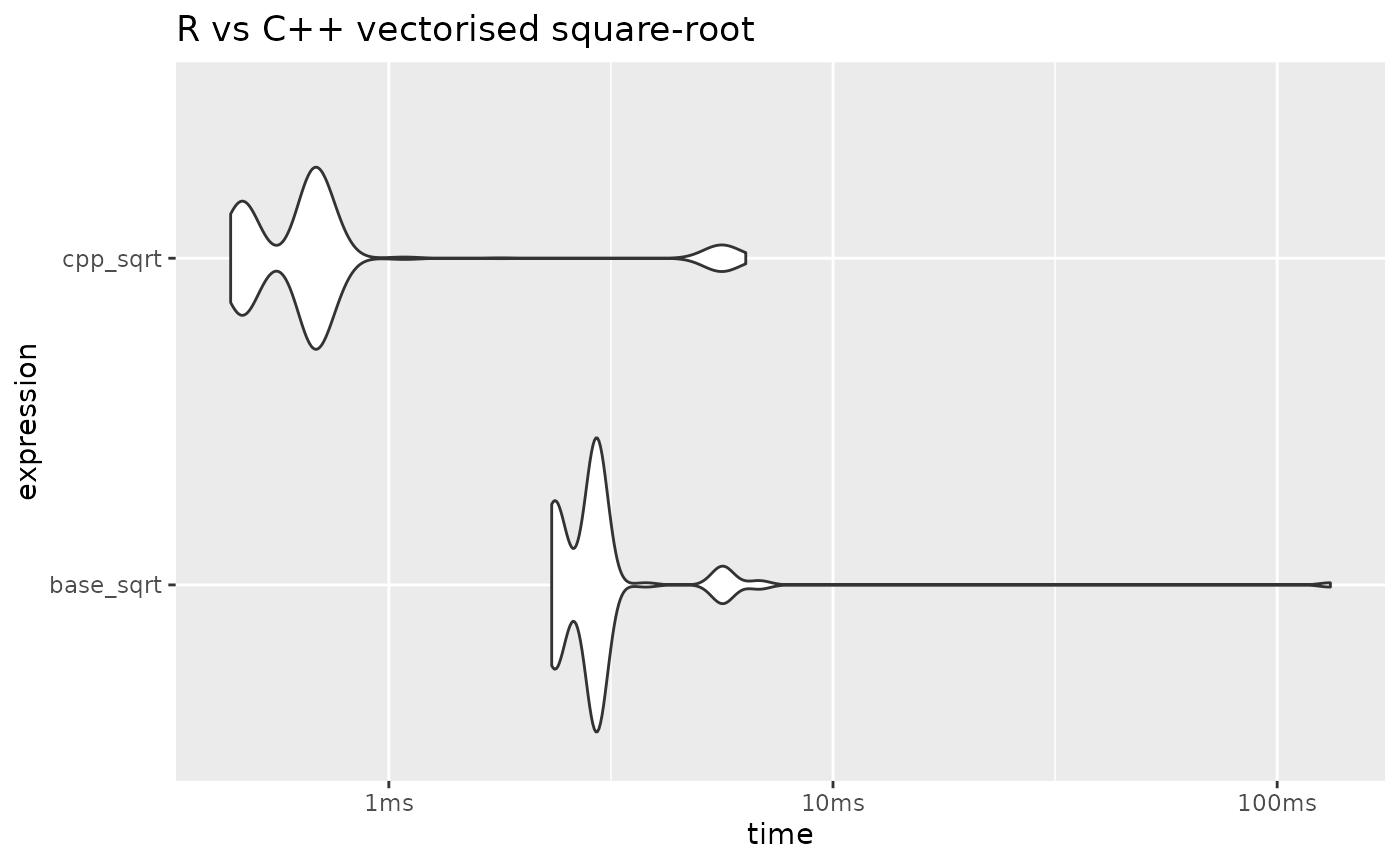

Let’s benchmark this against base::sqrt(), but first let’s use 4 threads for the rest of the examples in this vignette.



[[cppally::register]]
void cpp_set_threads(int n){
  set_threads(n);
}

cpp_set_threads(4) # Set 4 threads for the rest of the examples

x <- rnorm(5e05, mean = 50)

(
  mark(
    base_sqrt = sqrt(x),
    cpp_sqrt = cpp_sqrt(x)
  ) |>
    autoplot(type = "violin")
) +
  labs(title = "R vs C++ vectorised square-root")

For more math functions, see cppally/math/math.h, a header containing a rich set of cppally math functions.

cppally also provides quite a few vectorised operators out-of-the-box. The vectorised operators currently defined:

binary: +,-,*,/,+=,-=,*=,/=,==,<=,<,>=,>,|,&

unary: !,-

When it comes to arithmetic operations, both cppally and R are heavily optimised to use in-place modification where possible. This greatly improves performance when multiple arithmetic operations are chained one after the other.

Since R is heavily optimised in this case, any performance gains cppally makes over R are likely to come from using multiple threads.


template <RNumber T>
[[cppally::register]]
r_vector<T> cpp_add(r_vector<T> x, r_vector<T> y, r_vector<T> z){
  return x + y + z;
}
template <RNumber T>
[[cppally::register]]
r_vector<T> cpp_multiply(r_vector<T> x, r_vector<T> y, r_vector<T> z){
  return x * y * z;
}

a <- sample(c(-1L, NA_integer_, 0L, 1L, -100L, 100L), 5e05, replace = TRUE)
b <- sample(c(NA_real_, 0, -1/3, 1/3, -10^9, 10^9), 5e05, replace = TRUE)

results <-
 mark(
   `a + a + a (base w/integers)` = a + a + a,
   `a * a * a (base w/integers)` = a * a * a,
   `b + b + b (base w/doubles)` = b + b + b,
   `b * b * b (base w/doubles)` = b * b * b,

   `a + a + a (cppally w/integers)` = cpp_add(a, a, a),
   `a * a * a (cppally w/integers)` = cpp_multiply(a, a, a),
   `b + b + b (cppally w/doubles)` = cpp_add(b, b, b),
   `b * b * b (cppally w/doubles)` = cpp_multiply(b, b, b),
   check = FALSE
 )

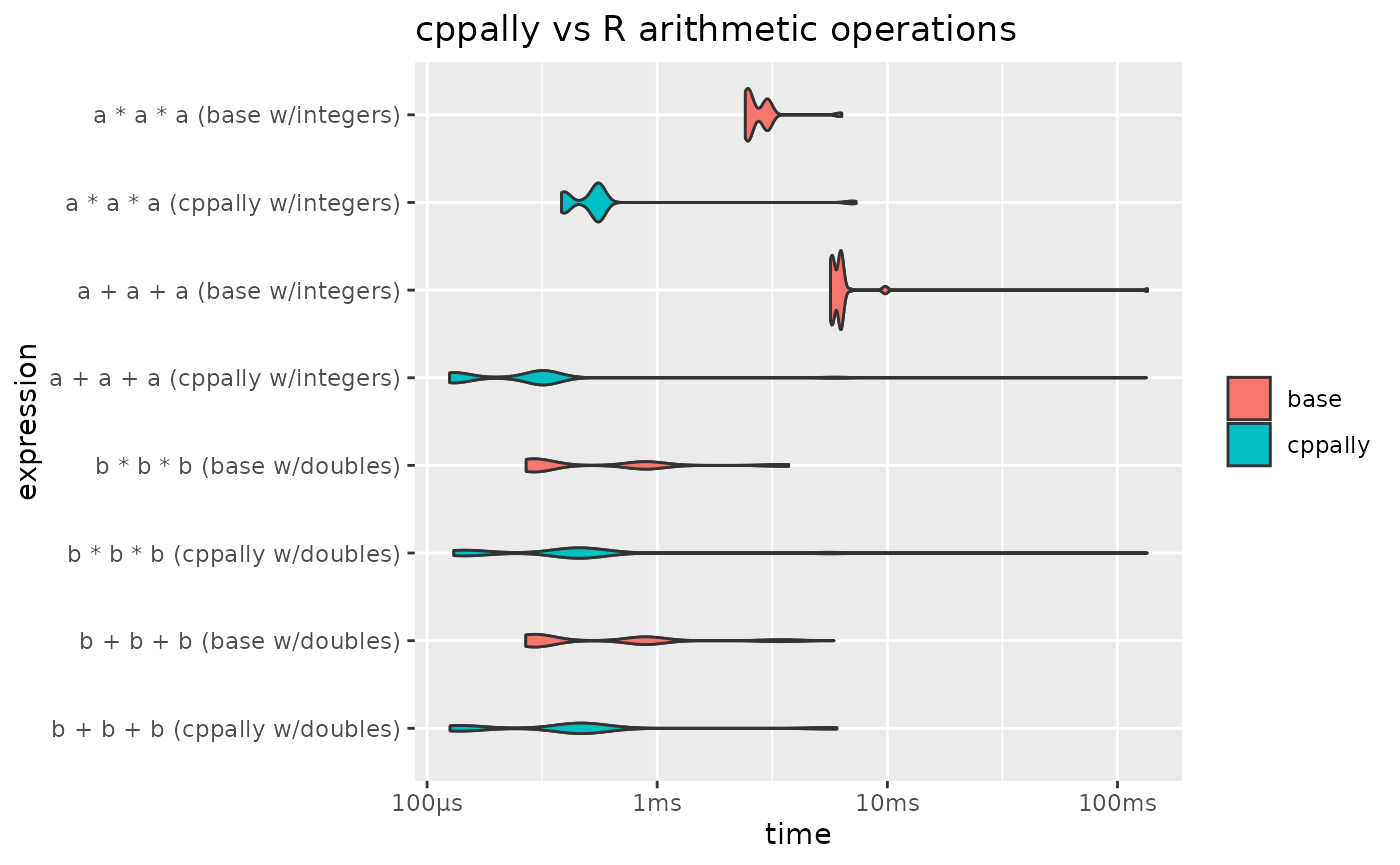

results |>
  autoplot(type = "violin") +
  geom_violin(aes(fill = ifelse(grepl("base", expression), "base", "cppally"))) +
  labs(title = "cppally vs R arithmetic operations") +
  scale_y_discrete(limits = rev) +
  theme(legend.title = element_blank())

From the results we can see that integer operations are faster with cppally. This is partly due to multiple threads being used, but also because cppally integer arithmetic is carefully written to be SIMD-friendly. It propagates NA values and also returns NA on integer-overflow, so it is just as safe as R. The difference is that the arithmetic is written to be as branchless as possible, allowing SIMD instructions to be executed. You can see the internal implementation in scalar/arithmetic_ops.h.

Grouped operations

In modern analyses it has become more common to see grouped operations. Packages like ‘dplyr’ (via group_by()) and ‘data.table’ (via by keyword) natively support applying R functions by group.

cppally provides a similar group-by-and-apply functionality via apply_by_group(): a C++ functional that accepts a vector x of data, groups g, and a vector-based function fn which is applied to x on a group-by-group basis using g.

fn can be a C++ function or an r_function (R function). We will first use apply_by_group() with an r_function, then with a C++ function, and compare both to base R.

Applying an R function by group

To produce the groups, use make_groups(), a function that converts a vector into group IDs and other group metadata, wrapped in a C++ class groups.


[[cppally::register]]
r_vector<r_dbl> cpp_grouped_apply(r_vector<r_dbl> x, r_vector<r_str> g, r_function fn){
    groups grps = make_groups(g);
    auto result = apply_by_group<r_dbl>(x, grps, fn);
    return add_group_names(result, g, grps);
}

The group names are added using a helper add_group_names()


// Helper to add group names, which are the unique values of group_data
// so that each result is associated with its group name
r_vector<r_dbl> add_group_names(r_vector<r_dbl>& result, r_vector<r_str> group_data, groups g){
    r_vector<r_str> nms = group_names(group_data, g);
    result.set_names(nms);
    return result;
}

For comparison, a base R split-and-apply equivalent

r_grouped_apply <- function(x, g, fn){
  vapply(split(x, factor(g, levels = unique(g))), fn, 0)
}

Applying a C++ function by group

Instead of passing R’s sum(), we can pass a lambda calling a C++ version, cppally::sum().


[[cppally::register]]
r_vector<r_dbl> grouped_sum(r_vector<r_dbl> x, r_vector<r_str> g){

    groups grps = make_groups(g);

    r_vector<r_dbl> sums = apply_by_group(
      x, /*groups = */ grps,
      [](const r_vector<r_dbl>& chunk){
          return sum(chunk, /*na_rm = */ true);
      });

      return add_group_names(sums, g, grps);
}

Benchmarks

base::sum() is a primitive, which means it calls C code directly, hence it should provide a good baseline for what can be achieved with a base R split-and-apply method.

cpp_set_threads(1) # Run these benchmarks using a single thread
n <- 5e05
x <- rnorm(n)

# 3 groups
g <- sample(c("a", "b", "c"), n, replace = TRUE)
(
  mark(
  base_grouped_sum = r_grouped_apply(x, g, sum),
  cppally_grouped_r_sum = cpp_grouped_apply(x, g, sum),
  cppally_grouped_cpp_sum = grouped_sum(x, g),
  min_iterations = 10
) |>
    autoplot(type = "violin")
) +

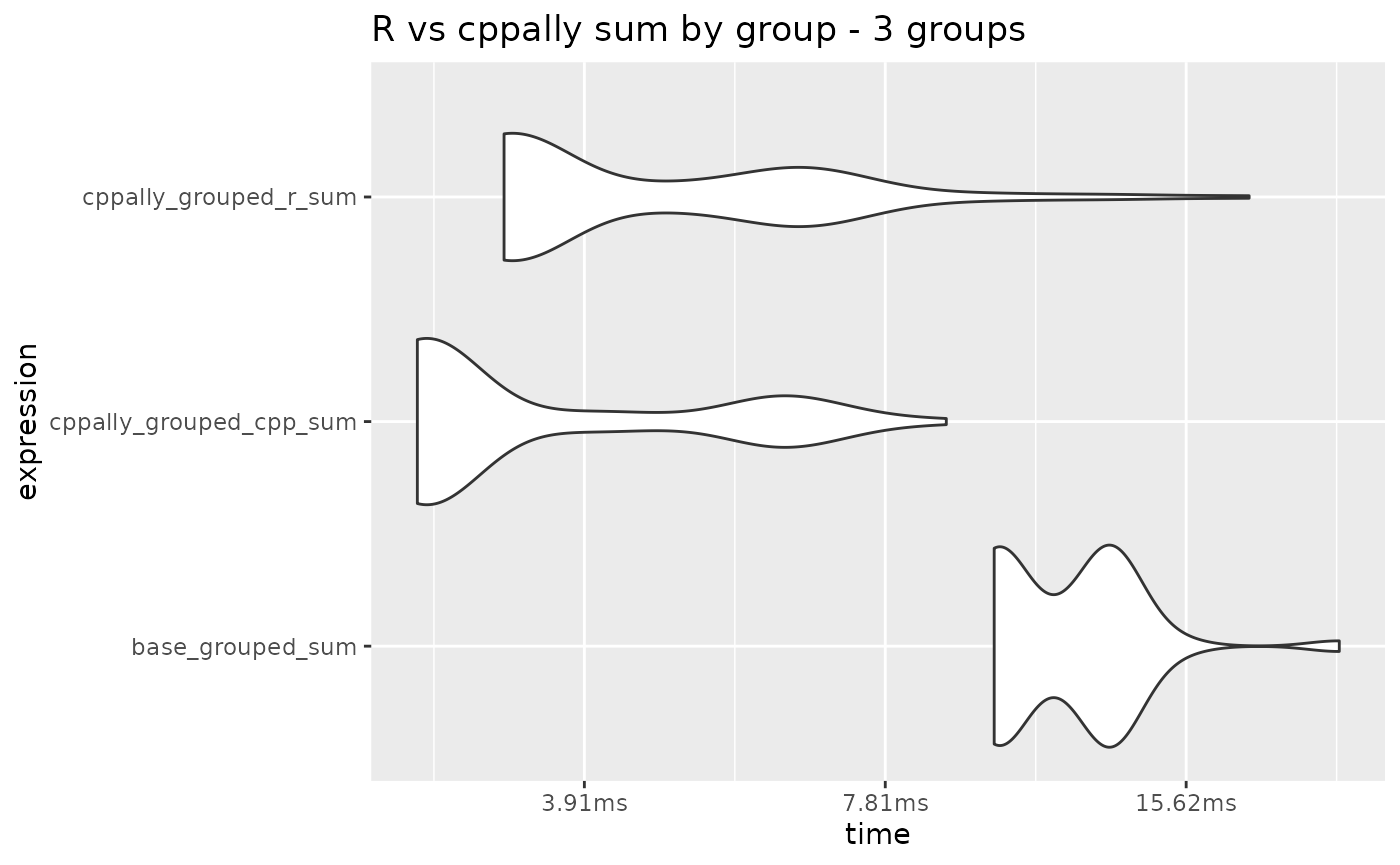

  labs(title = "R vs cppally sum by group - 3 groups") +
  bench::scale_x_bench_time(base = 2)


# 1e04 groups
g <- as.character(sample.int(10^4, n, replace = TRUE))
(
  mark(
  base_grouped_sum = r_grouped_apply(x, g, sum),
  cppally_grouped_r_sum = cpp_grouped_apply(x, g, sum),
  cppally_grouped_cpp_sum = grouped_sum(x, g),
  min_iterations = 10
) |>
    autoplot(type = "violin")
) +

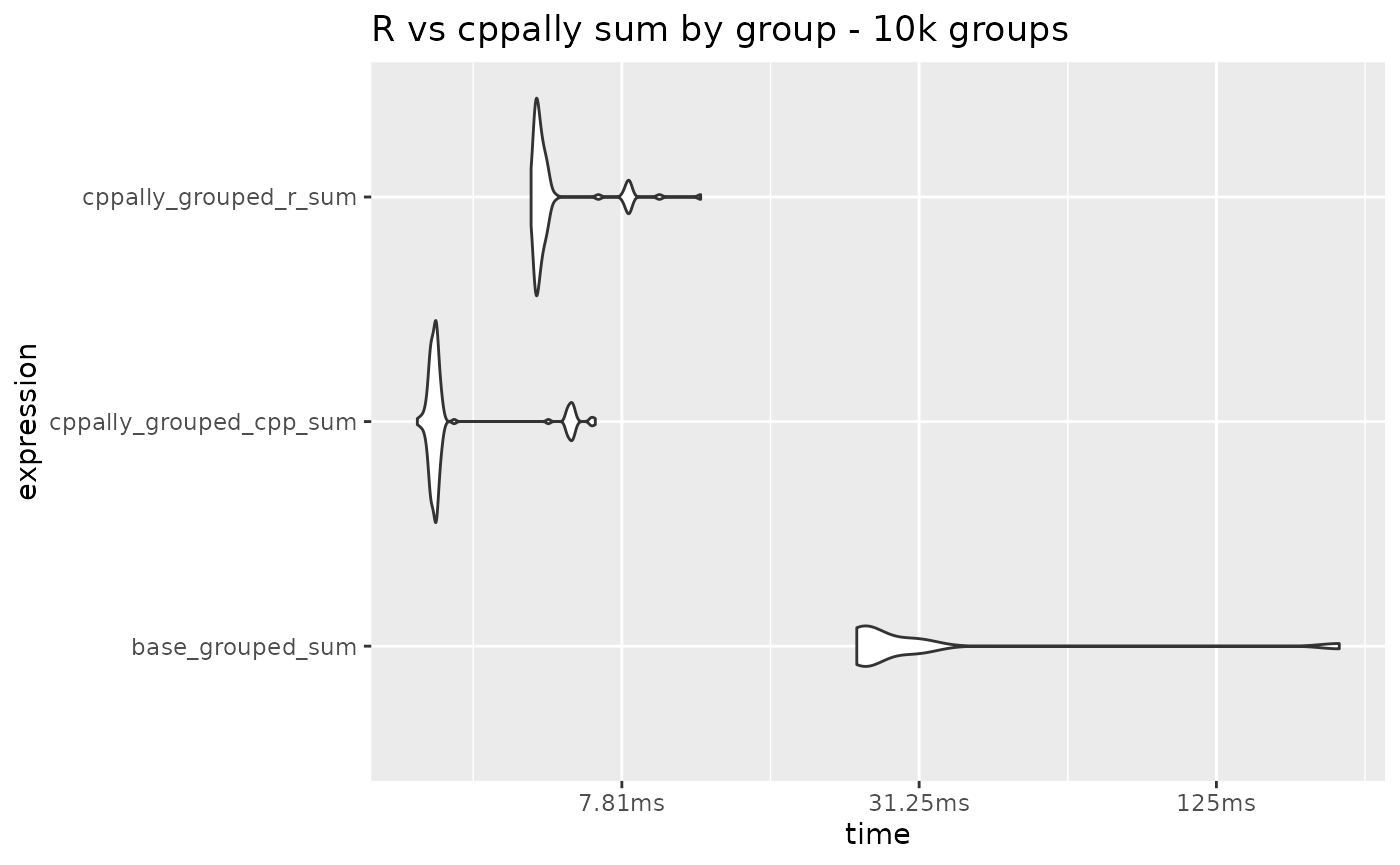

  labs(title = "R vs cppally sum by group - 10k groups") +
  bench::scale_x_bench_time(base = 2)


# 1e05 groups
g <- as.character(sample.int(10^5, n, replace = TRUE))
(
  mark(
  base_grouped_sum = r_grouped_apply(x, g, sum),
  cppally_grouped_r_sum = cpp_grouped_apply(x, g, sum),
  cppally_grouped_cpp_sum = grouped_sum(x, g),
  min_iterations = 10
) |>
    autoplot(type = "violin")
) +

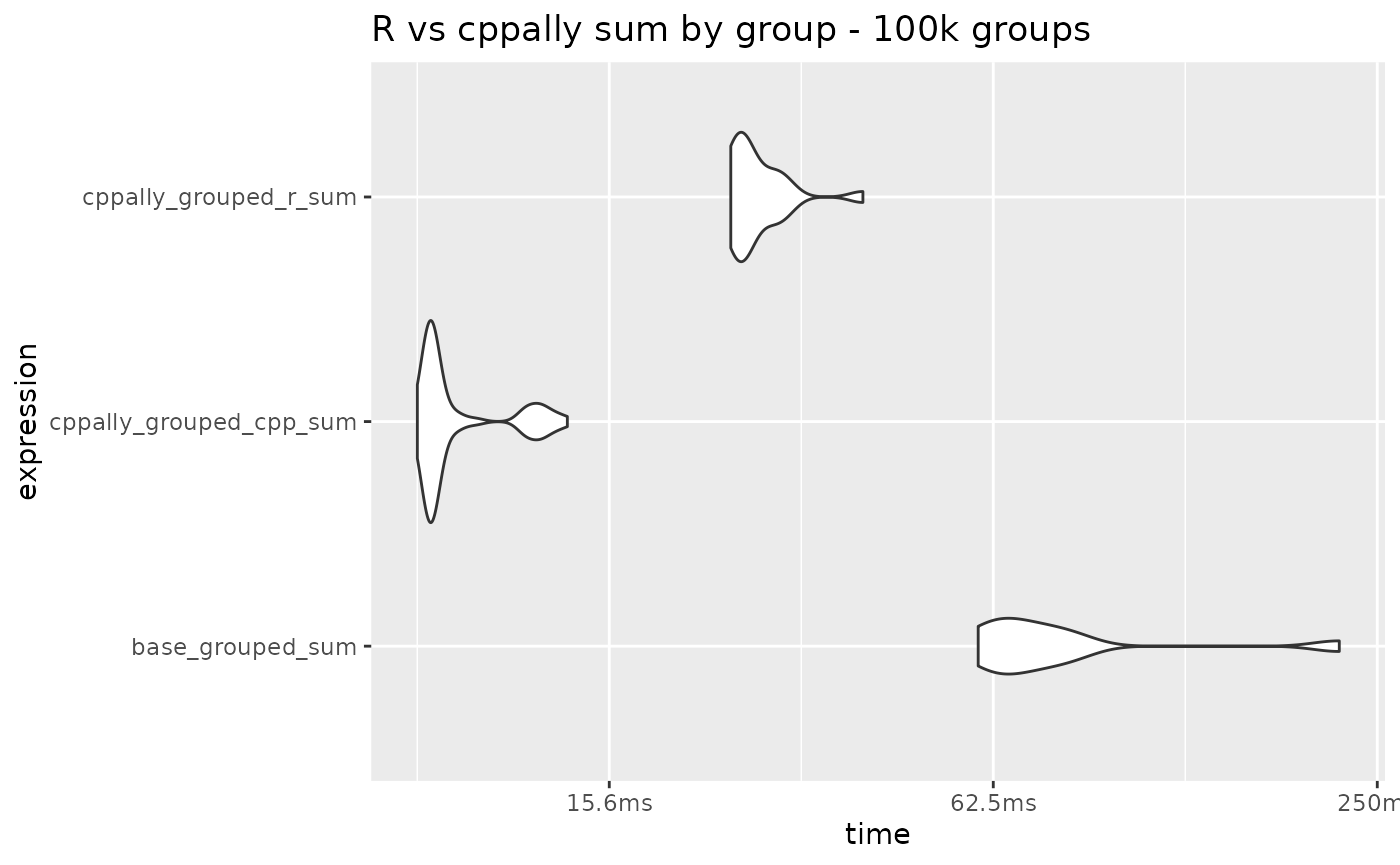

  labs(title = "R vs cppally sum by group - 100k groups") +
  bench::scale_x_bench_time(base = 2)

Passing R’s sum() performs similarly to cppally::sum() for small numbers of groups. Most of the time is spent grouping and moving data, which is shared by both, and calling a primitive like sum() from C++ adds little overhead per group.

By-group median

Non-primitive R functions like median() are much more expensive to call, and that cost is paid once per group. cppally’s quantile(prob = 0.5) gives the same result as median(), so we can use it for the comparison.


[[cppally::register]]
r_vector<r_dbl> grouped_median(r_vector<r_dbl> x, r_vector<r_str> g){

    groups grps = make_groups(g);

    r_vector<r_dbl> medians = apply_by_group(
      x, grps,
      [](const r_vector<r_dbl>& chunk){
          return quantile(chunk, 0.5, /*na_rm = */ true);
      });

      return add_group_names(medians, g, grps);
}

# 1e04 groups
g <- as.character(sample.int(10^4, n, replace = TRUE))
(
  mark(
  base_grouped_median = r_grouped_apply(x, g, median),
  cppally_grouped_r_median = cpp_grouped_apply(x, g, median),
  cppally_grouped_cpp_median = grouped_median(x, g),
  min_iterations = 3
) |>
    autoplot(type = "violin")
) +

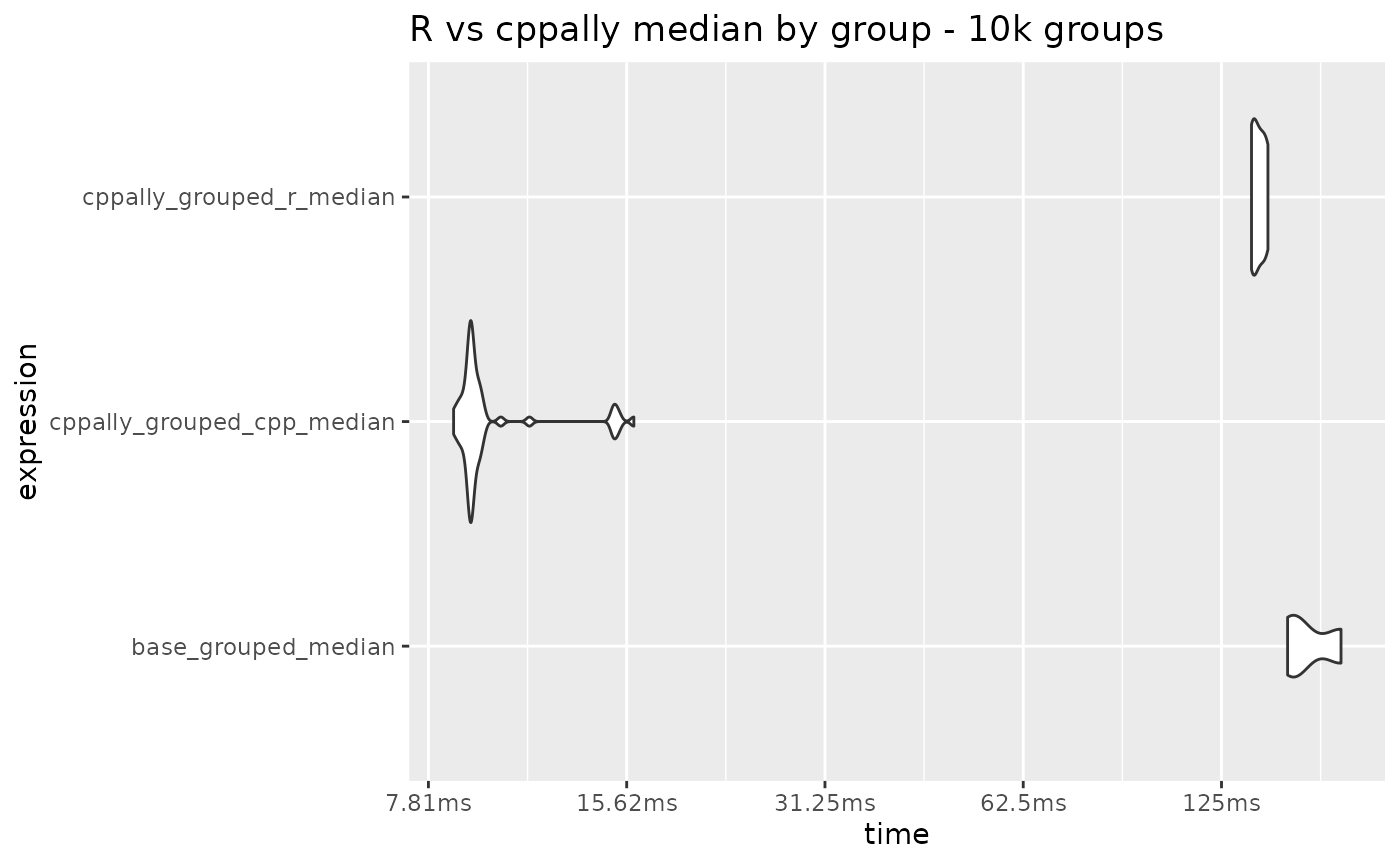

  labs(title = "R vs cppally median by group - 10k groups") +
  bench::scale_x_bench_time(base = 2)
#> Warning: Some expressions had a GC in every iteration; so filtering is
#> disabled.

As we move from simpler functions like sum() to more complex ones like median(), we see that the calculation over many groups starts to become quite slow with R functions. There is a large difference between cppally_grouped_r_median and cppally_grouped_cpp_median, indicating that most of the time difference is spent in calling stats::median() itself.

Passing efficient C++ functions is hence more suitable for function calls on many groups.
